Heavy Duty Swivel Joint
HEAVY DUTY SWIVEL JOINT
Product Description
A Cable Pulling Swivel is coupling of connection that allows the connected object, such as a cable, conductor or wires to rotate freely either in a horizintally manner or in a vertical manner. The cable pulling swivel allows the cable winch rope to rotate during cable pulling and this preventing cable from twisting or kicking. The swivel eye will feely revolve to prevent twisting of any voltage power cables when pulling into cable duct or pipes including trench using cable pulling winches.
Product Specification
Item Code |
W.L.L (ton) |
Breaking Load (ton) |
Dimension (mm) |
Weight (kg) |
|||
---|---|---|---|---|---|---|---|
A | B | C | D | ||||
DSSB-CLA-HDS-3TON | 3.0 | 9 | 137 mm | 32 mm | 13 mm | 13 mm | 0.5 kg |
DSSB-CLA-HDS-5TON | 5.0 | 15 | 152 mm | 39 mm | 17 mm | 14mm | 1.0 kg |
DSSB-CLA-HDS-6.7TON | 6.7 | 20 | 160 mm | 42 mm | 18 mm | 16 mm | 1.1 kg |
DSSB-CLA-HDS-8.3TON | 8.3 | 25 | 177 mm | 45 mm | 20 mm | 16 mm | 1.2 kg |
DSSB-CLA-HDS-16.7TON | 16.7 | 60 | 228 mm | 60 mm | 25 mm | 24 mm | 3.4 kg |

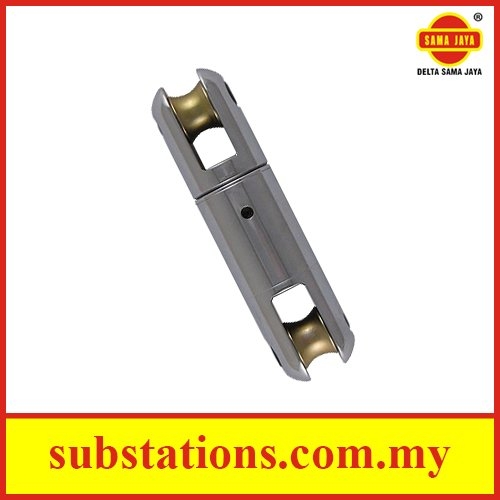

Product Image
