EARTHING ROD


Product Description

Copper Bonded Earthing Rod
SUBSTATION copper bond Earthing Rod
is made from high tensile - low carbon steel core with molecularly bond by 99.99% pure electrolytic copper. Both ends are thread`ed. The choice of materials used to manufacture an earthing rod will determine the life and performance of the grounding system. The materials which SUBSTATION utilizes will provide rugged mechanical strength, high conductivity and excellent corrosion resistance.


Rugged mechanical strength is one of the most important features of an earthing rod for easy driving into hard solid ground with minimum effort and to prevent rod damage.


Solid Copper Earthing Rod
SUBSTATION Solid Copper Earthing Rod is made from 99.8% pure copper. It feature with high corrosion resistance and have exceptional durability for longer life. It is designed for use in area/site where extreme condition such as High Salt content or Moisture content and for site where prone to flooding. It is tested with BSEN 13601:2021 Standard.



Technical Details Specification

The following are feature and standard found in SUBSTATION earthing rod:
  • SUBSTATION Earthing Rod is made from high tensile - low carbon grade steel core.
  • Electroplated with 99.99% pure electrolytic copper and molecularly bonded. - Coating thickness of 254μm.
  • No separation of copper bonding from the low carbon steel rod when observe from the fracture end of the earthing rod (i.e. good bonding between copper coated and steel rod)
  • No crack will appear when the copper electroplated steel rod is permanently bend.
  • Tested to the IEC Standard - 62561-2 Lightning Protection System Component (LPSC).*


Product Specification

Item Code Size (Nominal Diameter x Length) Type
DSSB-EA-CURD11200SS 1'' X 1200mm Copper Bonded
DSSB-EA-CURD11500SS 1'' X 1500mm Copper Bonded
DSSB-EA-CURD11800SS 1'' X 1800mm Copper Bonded
DSSB-EA-CURD341200SS 3/4'' X 1200mm Copper Bonded
DSSB-EA-CURD341500SS 3/4'' X 1500mm Copper Bonded
DSSB-EA-CURD341800SS 3/4'' X 1800mm Copper Bonded
DSSB-EA-CURD581200SS 5/8'' X 1200mm Copper Bonded
DSSB-EA-CURD581500SS 5/8'' X 1500mm Copper Bonded
DSSB-EA-CURD581800SS 5/8'' X 1800mm Copper Bonded
DSSB-EA-CURD161200SS 16mm X 1200mm Solid Copper
DSSB-EA-CURD161500SS 16mm X 1500mm Solid Copper
DSSB-EA-CURD161800SS 16mm X 1800mm Solid Copper

Standard:
IEC 62561-2, JKR Approval, BSEN 13601:2021

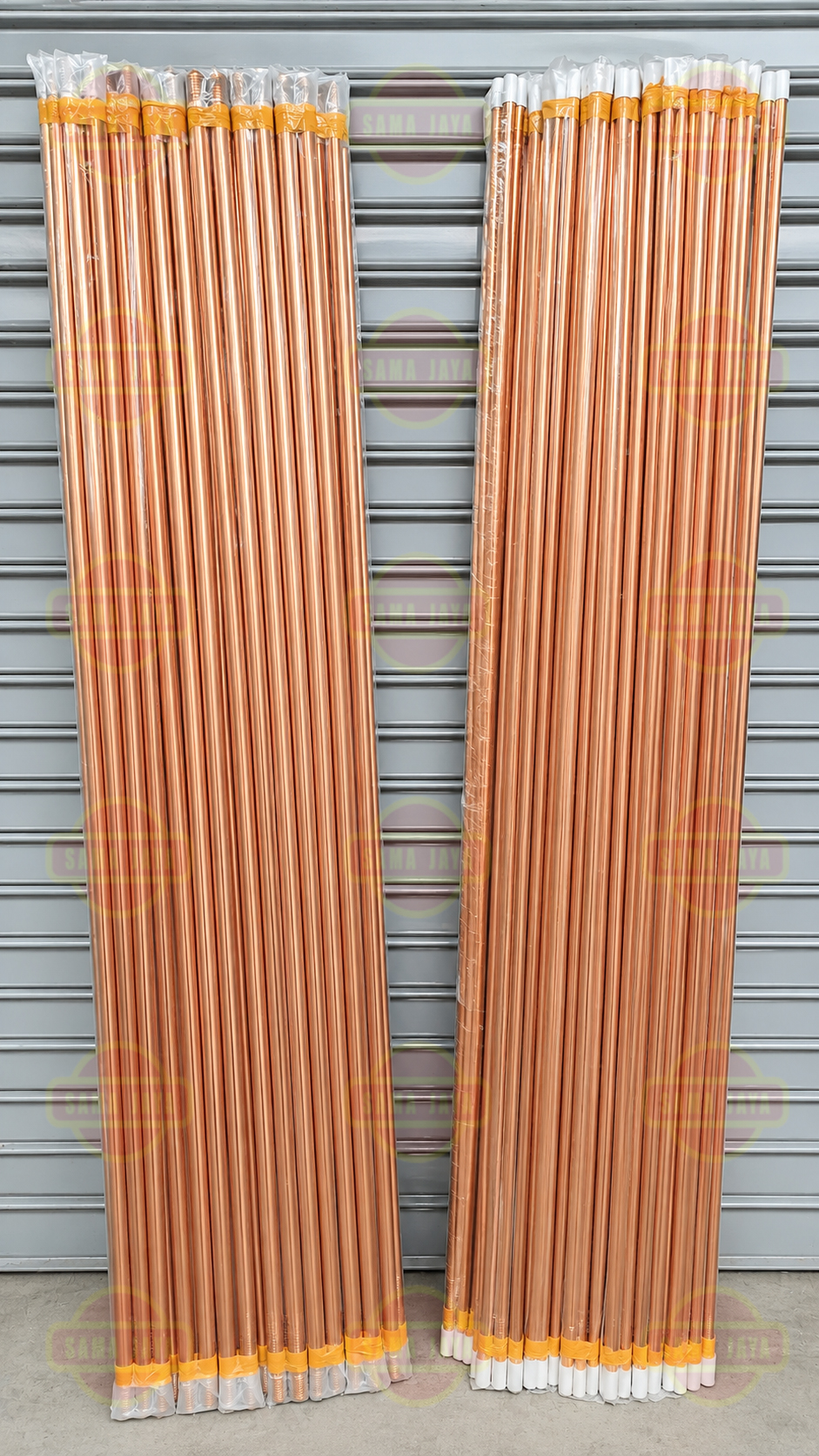

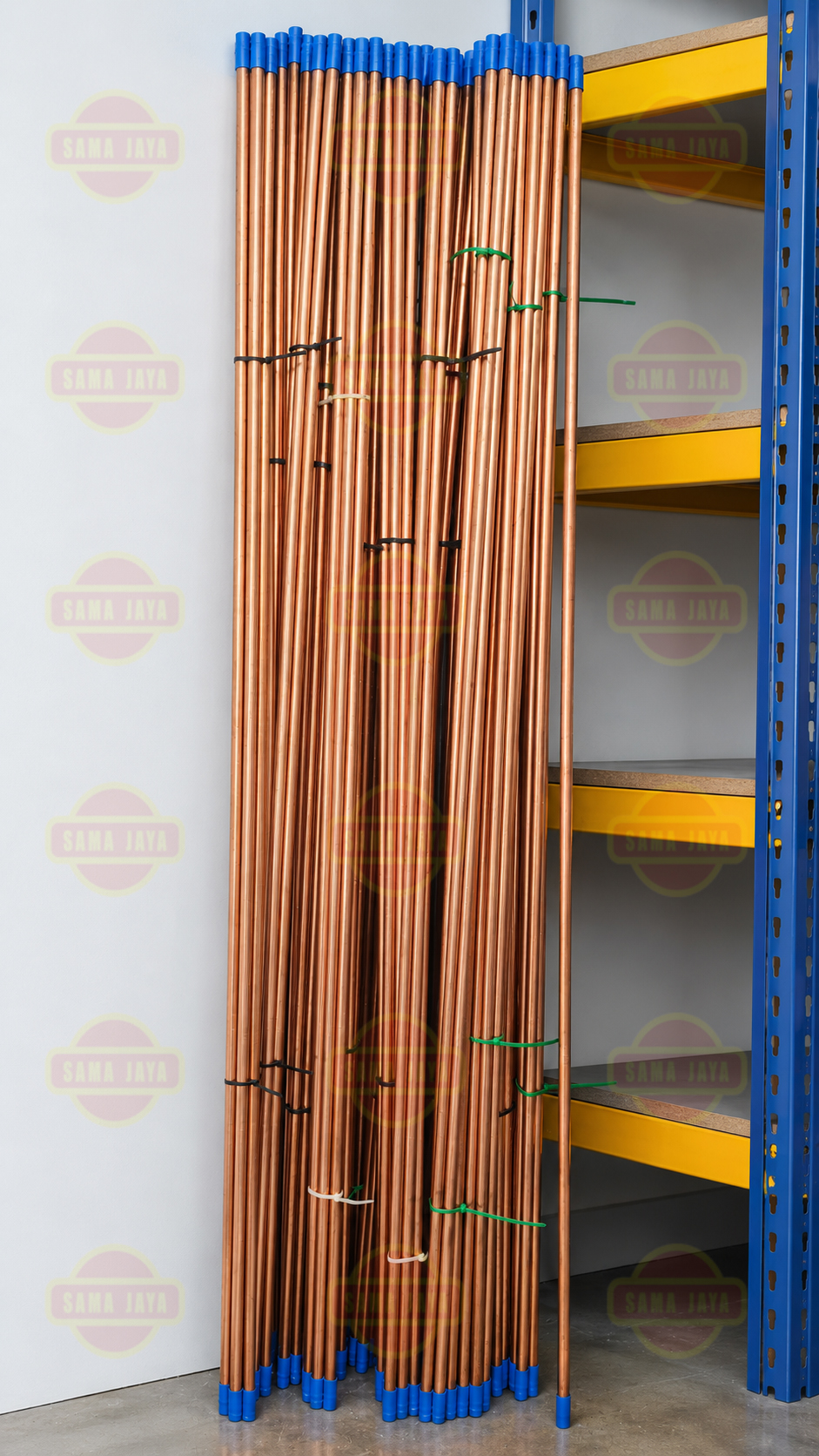

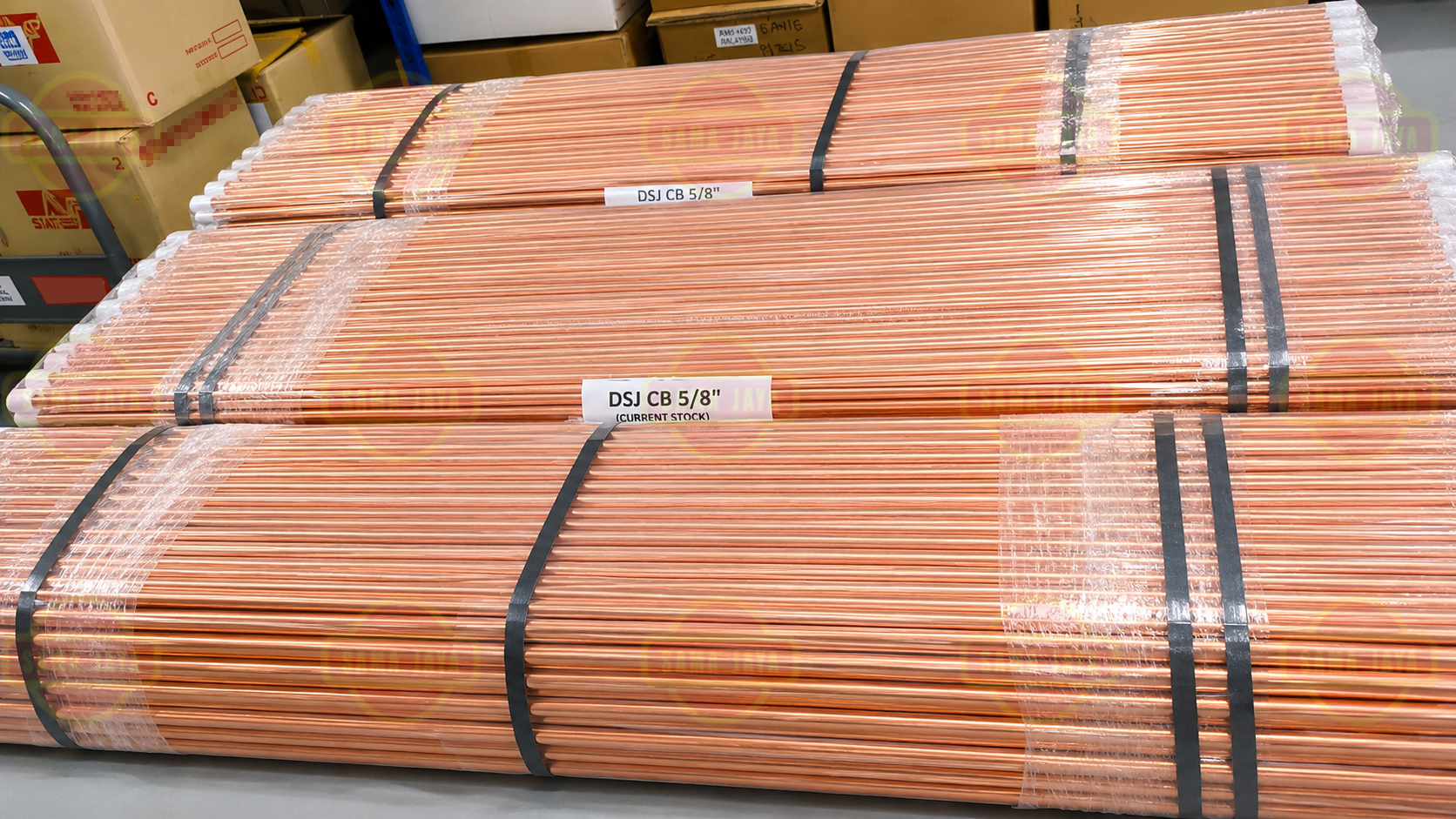

Product Image
