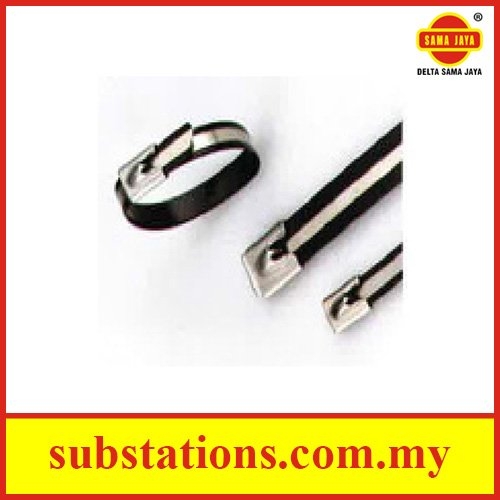

Semi Coated Stainless Steel Cable Ties Ball Lock Type
Product Description
Cable Tie Material : Stainless Steel AISI 304 & 316.
AISI 201 available upon request.
Operating Temperature : -80oC to 150oC
Application : For on board ship & offshore units. Fastening / Binding for indoor or outdoor uses.
Product Specification
Product Image
Cable Tie Material : Stainless Steel AISI 304 & 316.
AISI 201 available upon request.
Operating Temperature : -80oC to 150oC
Application : For on board ship & offshore units. Fastening / Binding for indoor or outdoor uses.
Product Specification
Item Code | Nominal Overall Length (L) | Approx. Width (W) x Thickness (mm) | Max Bundle Diameter (E) (mm) | Tensile Strength (kg) | ||
Inch | mm | |||||
EXTRA HEAVY DUTY | ||||||
DSSB-CT-12CCST-200 | 8'' | 200 | 12 x 0.50 | 50 | 120kg | |
DSSB-CT-12CCST-250 | 10'' | 250 | 12 x 0.50 | 63 | 120kg | |
DSSB-CT-12SCST-300 | 12'' | 300 | 12 x 0.50 | 76 | 120kg | |
DSSB-CT-12SCST-360 | 14.5'' | 360 | 12 x 0.50 | 90 | 120kg | |
DSSB-CT-12SCST-400 | 16'' | 400 | 12 x 0.50 | 102 | 120kg | |
DSSB-CT-12SCST-450 | 18'' | 450 | 12 x 0.50 | 120 | 120kg | |
DSSB-CT-12SCST-520 | 20.5'' | 520 | 12 x 0.50 | 145 | 120kg | |
DSSB-CT-12SCST-600 | 24'' | 600 | 12 x 0.50 | 160 | 120kg | |
DSSB-CT-12SCST-680 | 27'' | 680 | 12 x 0.50 | 180 | 120kg | |
DSSB-CT-12SCST-750 | 30'' | 750 | 12 x 0.50 | 200 | 120kg | |
DSSB-CT-12SCST-840 | 33.5'' | 840 | 12 x 0.50 | 250 | 120kg | |
DSSB-CT-12SCST-1050 | 42'' | 1050 | 12 x 0.50 | 285 | 120kg | |
SUPER HEAVY DUTY | ||||||
DSSB-CT-15SCST-250 | 10'' | 250 | 15 x 0.50 | 63 | 150kg | |
DSSB-CT-15SCST-300 | 12'' | 300 | 15 x 0.50 | 76 | 150kg | |
DSSB-CT-15SCST-360 | 14.5'' | 360 | 15 x 0.50 | 90 | 150kg | |
DSSB-CT-15SCST-400 | 16'' | 400 | 15 x 0.50 | 102 | 150kg | |
DSSB-CT-15SCST-450 | 18'' | 450 | 15 x 0.50 | 120 | 150kg | |
DSSB-CT-15SCST-520 | 20.5'' | 520 | 15 x 0.50 | 145 | 150kg | |
DSSB-CT-15SCST-600 | 24'' | 600 | 15 x 0.50 | 160 | 150kg | |
DSSB-CT-15SCST-680 | 27'' | 680 | 15 x 0.50 | 180 | 150kg | |
DSSB-CT-15SCST-750 | 30'' | 750 | 15 x 0.50 | 200 | 150kg | |
DSSB-CT-15SCST-840 | 33.5'' | 840 | 15 x 0.50 | 250 | 150kg | |
DSSB-CT-15SCST-1050 | 42'' | 1050 | 15 x 0.50 | 285 | 150kg |
Product Image
